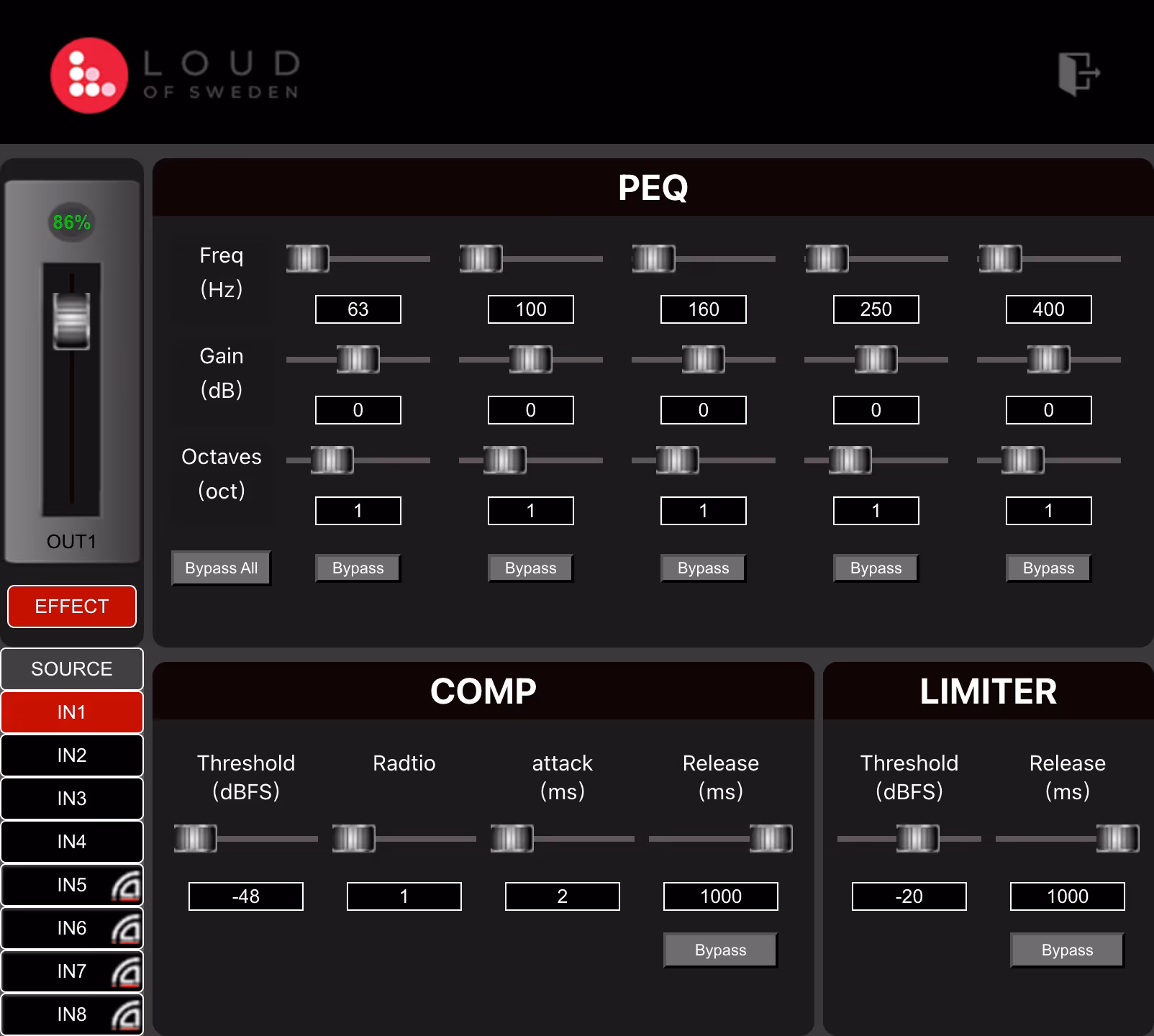

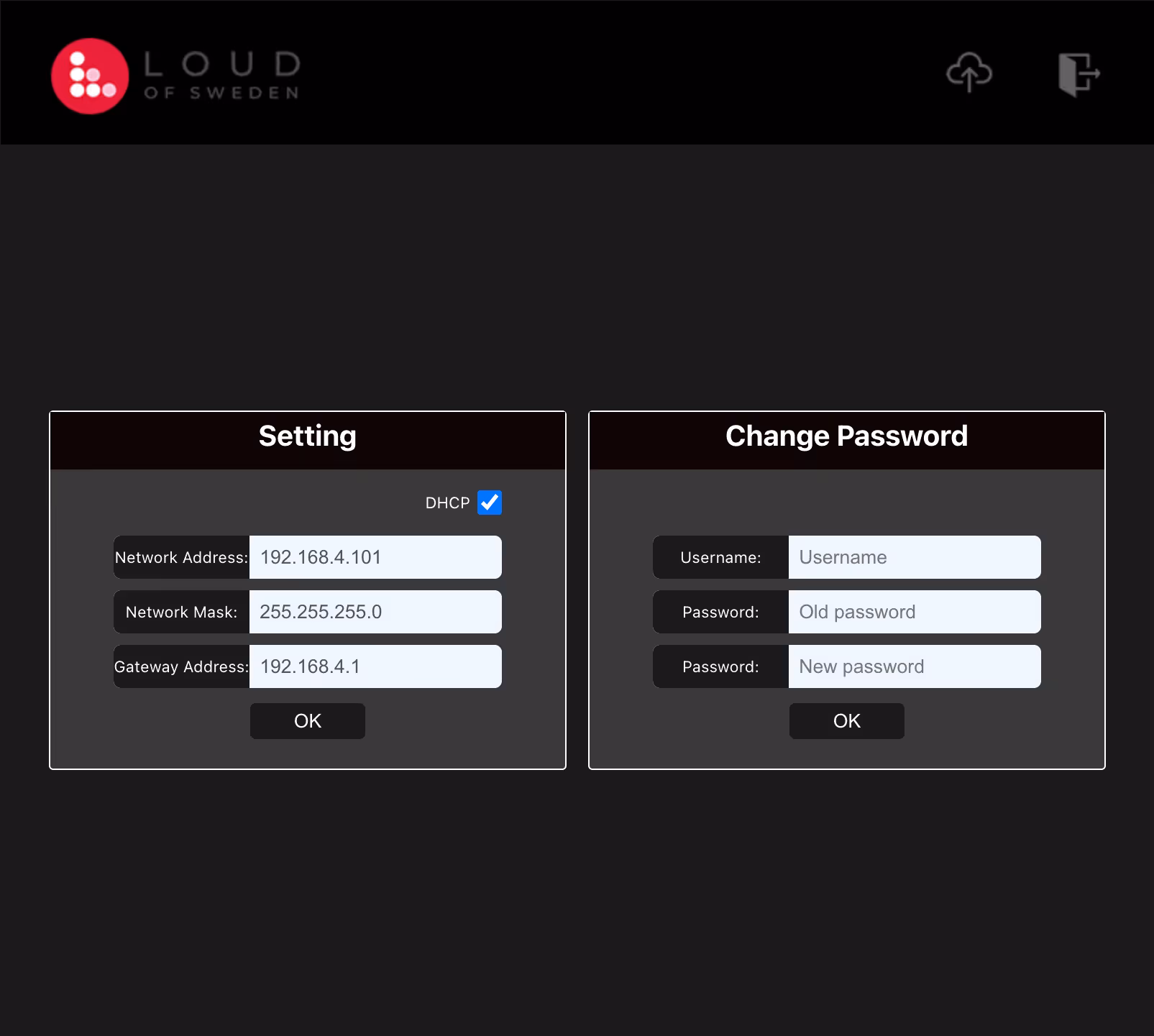

Nätverksansluten digital mixer analog 4x4 och Dante 4x4 matris med styrsytemet inbyggt genom html för din webläsare.
Genom att använda en html-mjukvara ger det användarna en mer intuitiv upplevelse och en mer intelligent ljudbehandling.
Rekommenderad browser Google Chrome
Analog Channels - 4-Channel Balanced Inputs + 4-Channel Balanced Outputs
Dante Channels - 4-Channel Inputs + 4-Channel Outputs
Frequency Response 20~20KHz，±0.5dB
Input Gain Amplification -6～36dB, 6dB level total 8 levels
Number of Quantization Bits 24
Sampling Rate 48kHz
System Delay ＜3ms
THD+N ≤0.005% @ 4dBu
POE 15-30W
Dimension (WXDXH) 142*157*46mm
Specification parameters
Parameter index
Analog maximum gain
30dB
quantization bits
24bit
Sampling Rate
48k
Frequency response
(20~20KHz)±0.25dB
A/D dynamic range
120dB
D/A dynamic range
120dB
Total Harmonic Distortion (TND+N)
≤0.002% @20-20KHz ,4dBu
Noise floor
-89dBu
input resistance
20kΩ balance, 10kΩ unbalan
output impedance
100Ω balance, 50 unbalance
input level
+12dBu, balanced
output level
+12dBu, balanced
Input Common Mode Rejection
70dB @ 60Hz
channel isolation
100dB
Maximum number of inputs (analog)
4
Maximum number of inputs (Dante)
4
Number of 485 serial ports
1PCS
Operating temperature
-10-40℃
Working power
AC 110V/220V 50Hz/60Hz
